Floor Broiler Building System
- Poultry Solutions
- Floor Broiler
- Floor Broiler Building System
Our buildings are innovative and advanced in design, tailored specifically for the Philippine environment with unique features making them operationally efficient, high performing, functional, robust and strong.
Our prefabricated agricultural floor broiler building systems are made locally in our Subic Bay factory. The buildings are designed to maximize efficiency throughout the building and to allow for optimal conditions to be reached to support broiler production and facilitate superior bird performance. These features include:

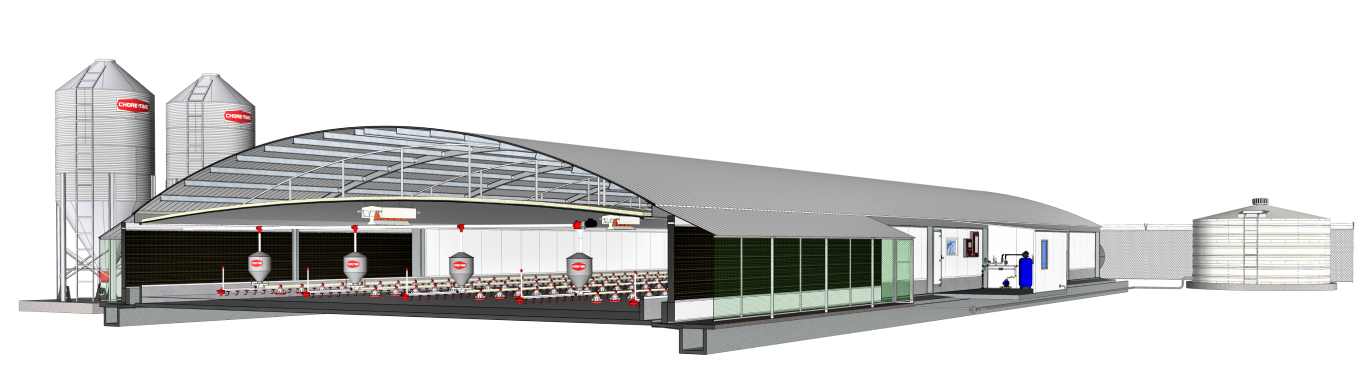

- Designed and calculated using 3D CAD software for high accuracy
- Prefabricated in our Subic factory and transported to site for fast and easy erection requiring no onsite cutting or welding
- Efficient, functional, and high performing building systems
- Customized specifically to perform well in the Philippine environment
Fundamental Characteristics
AFI offers a well planned and executed building system for floor broilers. To us, it is not just a building – it is a system that needs to be well designed, fabricated and constructed to generate exemplary results. The unique design of AFIs buildings boast six fundamental qualities:
Strong
Insulated
Ventilated
Durable
Rapid
Airtight
Building Features
AFI offers a well planned and executed building system for floor broilers. To us, it is not just a building – it is a system that needs to be well designed, fabricated and constructed to generate exemplary results.

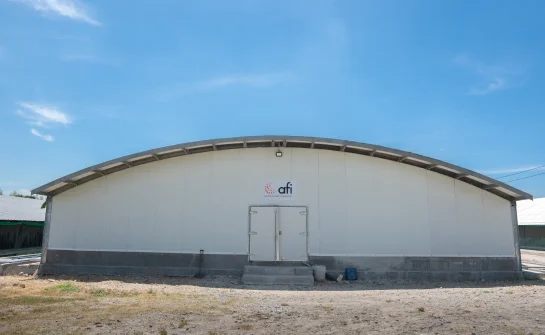

Arch Shape Structural Design
- Best structural design for clear span
- Designed specifically for compression loads
- No weak spots in the arch of the design – unlike a straight member
- Loads are distributed down to the vertical columns and footers
- Camber is designed to resist high wind loads
- Less steel verticals required as a result (less steel required)

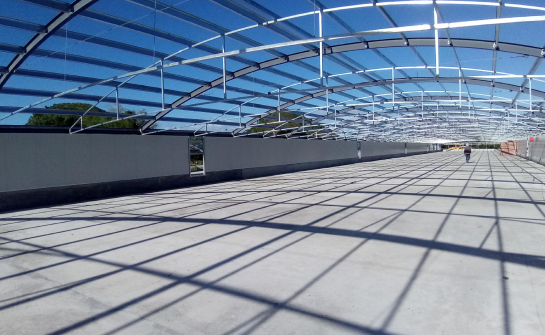

Trusses and Purlins
- Pre galvanized tube trusses for hanging equipment every 3m and supporting the drop ceiling every 1.5m
- Curved at ceiling attachment for better airflow
- Galvanized high strength steel Z-Purlin providing a strong roof structure

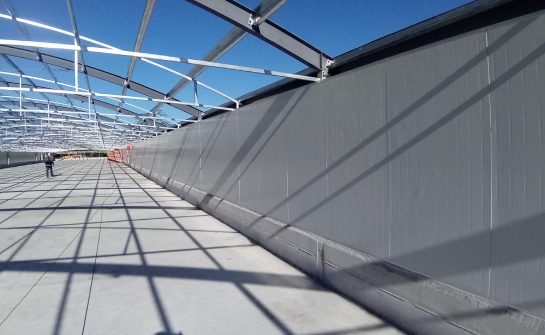

Sidewalls and End Walls
- 75MM PU panels with pre-painted GI (standard)
- High density PU (40kg), excellent thermal resistance with an R-value of 17
- Tongue and groove for easy install and airtight fit
- Easy to clean inside and out
- Zero air flow impediment for improved ventilation
- Film protected upon delivery

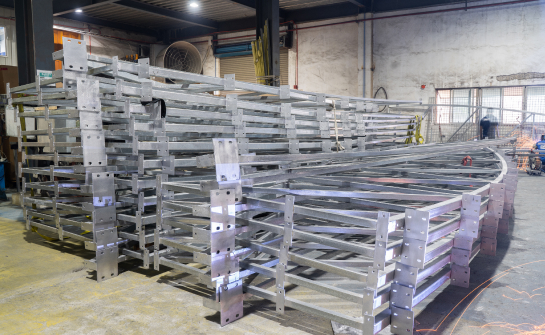

Quality Building Materials
- Pre galvanized tube trusses for hanging equipment every 3m and supporting the drop ceiling every 1.5m
- Curved at ceiling attachment for better airflow
- Galvanized high strength steel Z-Purlin providing a strong roof structure

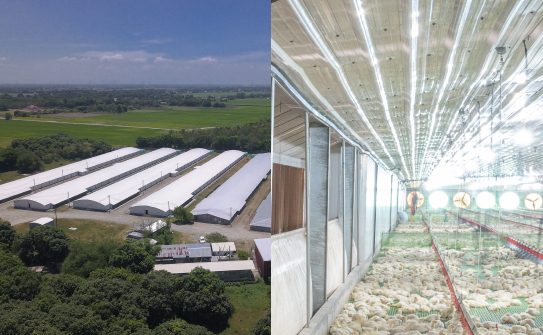

Roof and Ceiling
ROOFING
- Triply UPVC exterior roof panel
- UPVC fastener caps
CEILING
- Interior UPVC for improved seal throughout the interior and improved longevity
- Stainless steel fasteners
- Curved at ceiling attachment for better airflow
- Galvanized high strength steel Z-Purlin providing a strong roof structure
Our Poultry Solutions
Broiler
Our broiler solutions combine innovation and advanced building design with world leading equipment for optimal results.
Breeder
Our solutions for breeders create the optimal environment for breeding with custom lighting solutions and hi-tech equipment for monitoring and management.
Layer
Our solutions provide a hygienic and safe environment to rear your birds where incidence of disease is much lower, social friction is less, manure can be routinely removed, and overall management is simplified.
We provide superior quality buildings and equipment, with enhanced services, innovation and advanced technology
Our purpose is to be a leader in the poultry industry by providing superior quality buildings and equipment, with enhanced services, innovation and advanced technology.
Our focus is on not only meeting the needs of our clients, but exceeding their expectations. We do this by providing exceptional quality products and attentive service that nurtures long term relationships.
